≡ Home page » Hydraulics spare parts » hydraulic unit GT

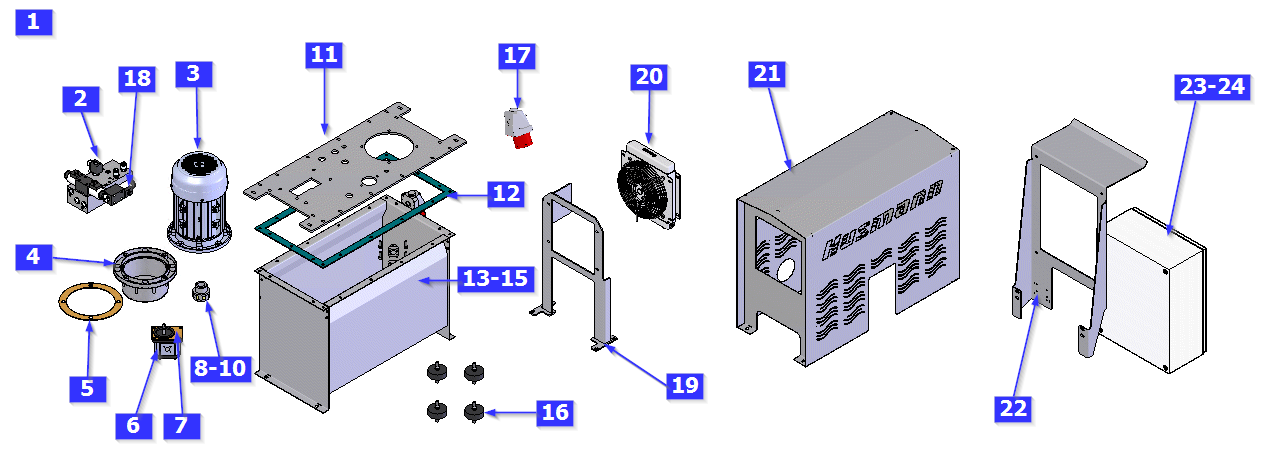

Article sorted by sub-Article groups to: hydraulic unit GT
🡽
The articles for the items marked here are displayed in the list with the corresponding number in square brackets.
article number
▲ new (old) ▼		▲ article description: ▼
1
1 Stück
 101535
(60150100)		Return filter KE 2656 cpl.
with insert KE 2658 and air filter
7
▶ details
2
1 Stück
 101448
(60100841)		Control block with additional P connection
Compressor control block GT		▶ details
3
1 Stück
 106075
(50450013/B)		Three-phase motor 5.5 KW, B5, IE3
1500 U/Min. 230/400 V		 35 Kg
3
▶ details
4
1 Stück
 101364
(60050005)		Aluminium pump carrier RV250/110/441
for 5,5 kW motor		 2 Kg
1		▶ details
5
1 Stück
 101383
(60050350)		Cork gasket D 250
between pump carrier and tank
▶ details
6
1 Stück
 101395
(60050587)		Hydraulic gear pump
Silence 14 ccm		 4 Kg
2
▶ details
7
1 Stück
 101385
(60050355)		Cork gasket BB411
between pump carrier and pump
▶ details
8
1 Stück
 101376
(60050270)		Coupling Spidex Alu A28.B17
pump side
2
▶ details
9
1 Stück
 101375
(60050265)		sprocket Spidex
Shore A ZK 28 white
▶ details
10
1 Stück
 101377
(60050275)		Coupling Spidex Alu A28/28H7
Motor side
2
▶ details
11
1 Stück
 109163		engine mount
ER00024553		▶ details
12
1 Stück
 100636
(02902080)		Rubber seal 380x730x4 mm
for GT 1750
ER00024572		▶ details
13
1 Stück
 106634		Hydraulic tank GT1750
850 x 635 x 380 mm
ER00024622		▶ details
14
1 Stück
 102218
(60450080)		Float switch tank installation
NT M20x1,5-TÖEL70-AL/MS-M3…-1K, L1 = 230 mm
1
▶ details
15
1 Stück
 102220
(60450100)		Tank heater for hydraulic oil
200 W, 230 V WS		▶ details
16
4 Stück
 100732
(14906015)		Rubber-metal buffer FORM A
75x25 mm. bds. thread M 12x37		▶ details
17
1 Stück
 101275
(50350270)		Wall appliance inlet 5 x 32 Amp.
CG 532/6H		▶ details
18
2 Stück
 104039
(60350019/B)		Pressure switch
fixed to 150 bar
▶ details
19
1 Stück
 109153		Fan bracket for GT1750
ER00112530		▶ details
20
1 Stück
 102223
(60450770)		Oil-air cooler 2015 K-2 Pass 230/400 V AC
(for Gigant roller compactor)		 6 Kg
7		▶ details
21
1 Stück
 106633		Cover for GT1750 tank
850 x 635 x 380 mm
ER00024622		▶ details
22
1 Stück
 110302		Control cabinet bracket GT-1750
4 x 712 x 995 mm
ER00224229		▶ details
23
1 Stück
 109861
(50700120)		Switch box for GT1750 complete
Includes wiring material, with control element		▶ details
24
1 Stück
 108941		Switch cabinet, AX 1045
for GT 1750		▶ details
article number new
(article number old)
