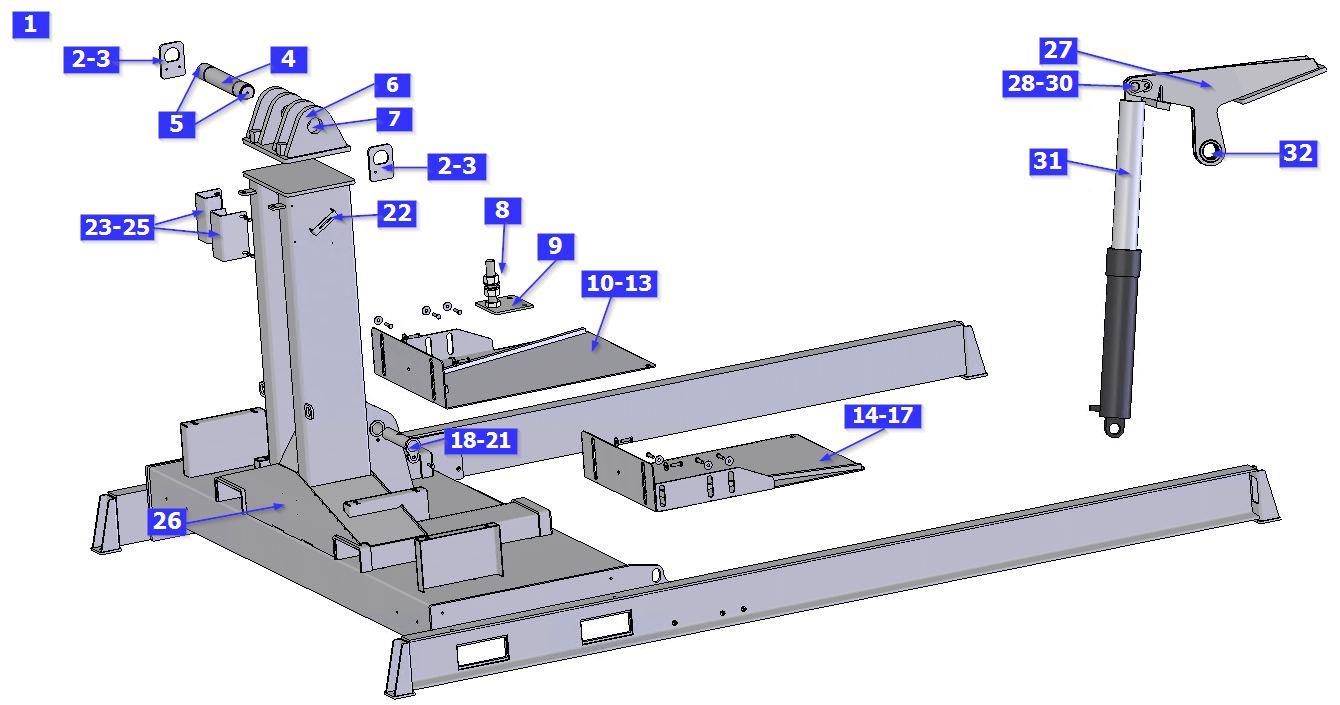

Artikkelnummer
▲ ny (gamle) ▼ | ▲ Beskrivelse av artikkelen: ▼ |
|
1 | | 1 Stück
107228 | | Gigant Standard shelf support
grounded |
 ER00024674 | |  | | ▶ detaljer |
|
|
2 | | 2 Stück
104128
(14901005) | | Locking device for PTO shaft |
ER00024431 | | | | ▶ detaljer |
|
|
3 | | 4 Stück
105170 | | Hexagon head screw ISO 4017 M10x30 |
KKN00319919 | | | | ▶ detaljer |
|
|
4 | | 1 Stück
104129
(14901000) | | Cardan shaft
70 x 430 mm, hardened and polished |
ER00057882 | |
 1 | | ▶ detaljer |
|
|
5 | | 2 Stück
103571
(01902450) | | Grease nipple H 1, M 10 x 1 | | | | | ▶ detaljer |
|
|
6 | | 1 Stück
106594
(14902041) | | Joint bracket Floor support
towards the boom |  53 Kg
ER00040079 | | | | ▶ detaljer |
|
|
7 | | 2 Stück
101974
(60251175) | | Dry plain bearing bush, on role
for GT 1750, BK 090-707580 | | | | | ▶ detaljer |
|
|
8 | | 1 Stück
109008
(14906100) | | Adjustable foot
for ST / GT centre support |  L 18 x B 20
H 1 cm
MAA00037811 | | | | ▶ detaljer |
|
|
9 | | 1 Stück
106991
(14902050) | | Levelling foot extension plates GT
500 x 500 mm | L 50 x B 50
H 21 cm 49.6 Kg
ER00115961 | |  | | ▶ detaljer |
|
|
10 | | 1 Stück
104224 | | Bottom plate in rolling direction, left
Use without centring rails |
ER00024601 | | | | ▶ detaljer |
|
|
11 | | 5 Stück
109697 | | Hexagon screw ISO 4017 M12x45 | | | | | ▶ detaljer |
|
|
12 | | 5 Stück
104803 | | Washer ISO 7093 - 12 | | | | | ▶ detaljer |
|
|
13 | | 3 Stück
110753 | | Hexagon nut ISO 10511 - M12 - 8
with clamping part, zinc | | | | | ▶ detaljer |
|
|
14 | | 1 Stück
104223 | | Bottom plate in rolling direction, right
Use without centring rails |
ER00024605 | | | | ▶ detaljer |
|
|
15 | | 5 Stück
109697 | | Hexagon screw ISO 4017 M12x45 | | | | | ▶ detaljer |
|
|
16 | | 5 Stück
104803 | | Washer ISO 7093 - 12 | | | | | ▶ detaljer |
|
|
17 | | 3 Stück
110753 | | Hexagon nut ISO 10511 - M12 - 8
with clamping part, zinc | | | | | ▶ detaljer |
|
|
18 | | 1 Stück
106666
(14901067) | | Bolt for floor support Gigant GT 1750
250 x 50mm |
ER00024533 | |
1 | | ▶ detaljer |
|
|
19 | | 2 Stück
106626
(14901066) | | Cylinder bottom bushing
20 x 145 mm |
ER300008.003.TCD | | | | ▶ detaljer |
|
|
20 | | 1 Stück
105203 | | Hexagon head screw ISO 4017 M10x40 | | | | | ▶ detaljer |
|
|
21 | | 1 Stück
104889 | | Hexagon nut ISO 10511 SS N - M10 | | | | | ▶ detaljer |
|
|
22 | | 2 Stück
107225
(60300170) | | Pipe clamp SP 325 PP-DP-AS | | | | | ▶ detaljer |
|
|
23 | | 2 Stück
107223
(14906090) | | Box for automatic lubrication bush
painted in RAL 7016 |
ER00024377 | | | | ▶ detaljer |
|
|
24 | | 4 Stück
104972 | | Hexagon head screw ISO 4017 M8x16 | | | | | ▶ detaljer |
|
|
25 | | 4 Stück
105414 | | Washer ISO 7089 - 8 | | | | | ▶ detaljer |
|
|
26 | | 1 Stück
109117 | | Adapter 200 mm |
ER00025631 | | | | ▶ detaljer |
|
|
26 | | 1 Stück
107229 | | Adapter 300 mm
for raising GT Export | L 58 x B 64.7
H 35 cm
ER00068285 | | | | ▶ detaljer |
|
|
26 | | 1 Stück
106044 | | Adapter 450 mm
for raising GT Export | L 58 x B 64.7
H 45 cm 142 Kg
ER00128114 | |
2 | | ▶ detaljer |
|
|
26 | | 1 Stück
107063 | | Adapter 600 mm
for raising GT Export | L 58 x B 64.7
H 60 cm
ER00096561 | |
1 | | ▶ detaljer |
|
|
27 | | 1 Stück
106828
(14901050) | | Lifting arm
for GT 1750 | 70 Kg
ER00024675 | | | | ▶ detaljer |
|
|
28 | | 1 Stück
104132
(14901051) | | Cylinder stud with lubrication channel
40 x 95 mm |
ER00024623 | | | | ▶ detaljer |
|
|
29 | | 1 Stück
104721
(01902465) | | Grease nipple H 1, M 6 x 1 | | | | | ▶ detaljer |
|
|
30 | | 1 Stück
105170 | | Hexagon head screw ISO 4017 M10x30 |
KKN00319919 | | | | ▶ detaljer |
|
|
31 | | 1 Stück
101934
(60250721) | | Plunger cylinder, 120 x 110 x 620 stroke E=885mm
for GT 1750 standard | 86 Kg | |
1 | | ▶ detaljer |
|
|
32 | | 2 Stück
101971
(60251170) | | Dry plain bearing bush, on role
for GT 1750, BK 090-707540 | | | | | ▶ detaljer |
|
Artikkelnummer ny
(Artikkelnummer gamle) |
Husmann reservedelskatalog
